Half Height Tourniquet Security Access Control QR Code Ticket RFID Card reader Automatic Tripod Turnstile Gate
Occasion Application
Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.
Feature
v Running stable without noise and mechanical impact
v Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
v After swiping card in normal condition, if within the permitting time passages do not pass, the system will cancel the users’ pass right and arm close automatically
v Arm automatically open when the power off to make sure safety In case of emergency
v Optional for external counter to record the people numbers for each lane
v Single way or Bi-directional adjustable based on the requirement.
v Equipped with LED directional indication / status lights
The scale of the factory is leading the industry. we are the manufacturer of Turnstile gates which the top 1 of annual production in China , we own 2 factories in Shenzhen and Meizhou Guangdong covers over 50000 square meters .

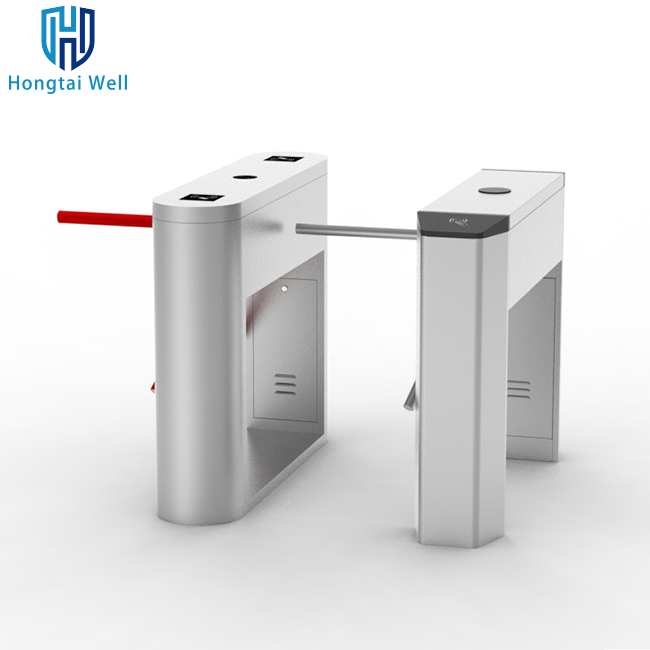

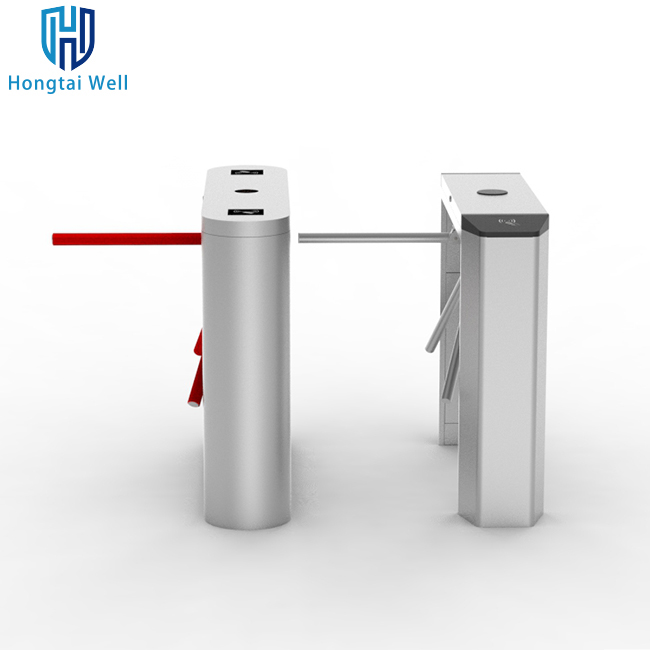

CW308 intelligent bridge style tripod turnstile,adopts STC CPU chip,high life and high stability,high efficiency and anti-tailing,supports various IC/ID readers,barcode readers,ID card readers,etc.,easy to link with access control systems.It is widely used in the entrance and exit control
of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens,etc.
1.Power supply:AC220V±10%,50±10Hz
2.working environment:-25℃ to 70℃
3.Relative humidity,≤90% no condensation
4.open/ close time: not adjustable
5.Power-on system startup time: 1 second
6.Number of passers:20-30 persons/minute
7.Normal service life: 3 million times
8.Chassis material: standard 304 stainless steel
9.standard channel width :550mm
10.The shape of the chassis can be customized according to requirements
| Technical parameters |
| Product model | CW308 |
| Voltage | AC220V±10%,50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Input control signal | Switch value |
| Running speed | 20~30 people/minute. |
| Opening and closing time | Not adjustable |
| Number of trouble-free runs | 2 million times |
| Average life span | 3 million times |
| Channel width | 550mm |
| Boom material | Stainless steel round tube |
| Product Size | L 1200mm x W 280mm x H 990mm |
| Channel frame | 1.0mm 304D stainless steel |
| Package weight | About 45KG (single side) |
